Shower channels / Floor drain systems

WatoRin®

Shower channel and floor drain systems for barrier-free shower space solutions

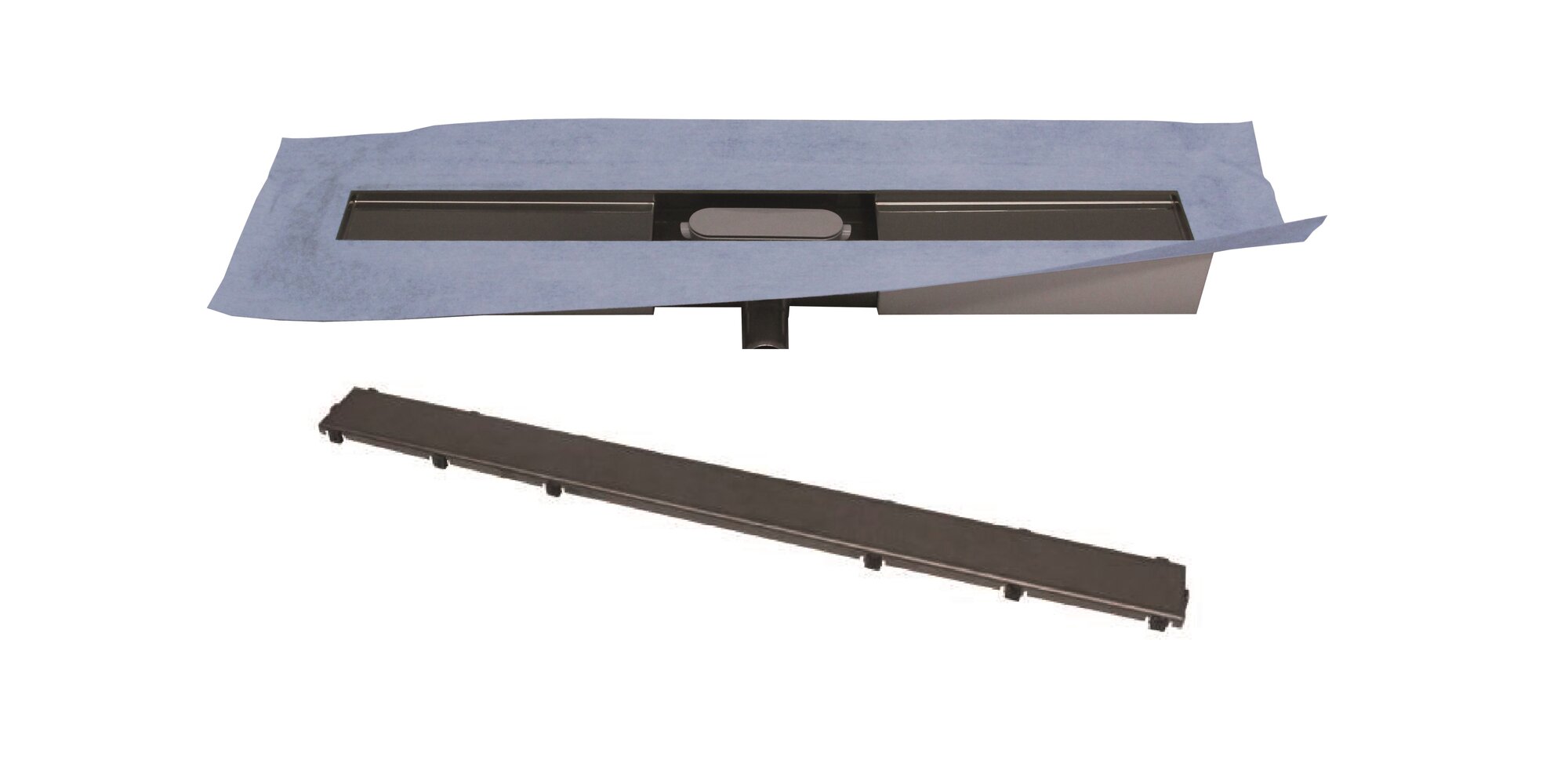

WatoRin® SDR 62

Super-flat shower channel from 62 mm installation height with 30 mm barrier water height (available in different lengths and with different inserts)

Advantages:
  • With factory-fitted, tested sealing collar for connection in accordance with the general building authority test certificate (abP).
  • Tested according to DIN EN 1253
  • Perfect for renovations with only 62 mm installation height

Downloads

WatoRin® SDR 82

Super-flat shower channel from 82 mm installation height with 50 cm barrier water height (available in different lengths and with different inserts)



Advantages:
  • With factory-fitted, tested sealing sleeve for connection in accordance with the general building inspection test certificate (abP).
  • Tested according to DIN EN 1253
  • 50 mm sealing water height for standard-compliant drainage according to DIN EN 274

Downloads

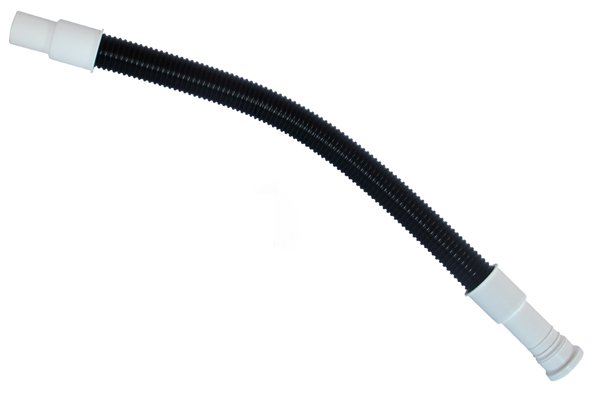

WatoRin® SDR-FS 75

Flexible hose with innovative smooth inner surface with taper from DN 50 to DN 40 for standard-compliant connection of WatoRin® SDR shower channels

Advantages:
  • Flexible connection in any connection situation
  • Can be extended (according to standards only up to 1 m to DN 40!)
  • No biofilm adhesion in the pipe

Downloads

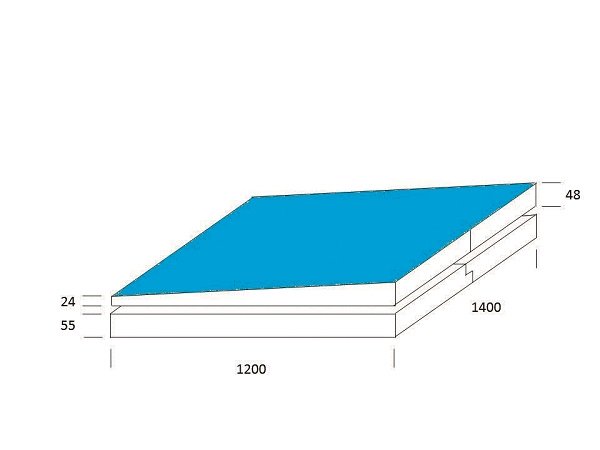

WatoRin® GEB 82

Slope board incl. composite sealing membrane for floor-level showers, suitable for all WatoRin SDR 82 shower channels

Advantages:
  • In sizes 1000 x 1000 and 1200 x 1400, optionally also with separate substructure element
  • Ready sealed slope board
  • Wheelchair-accessible

Downloads

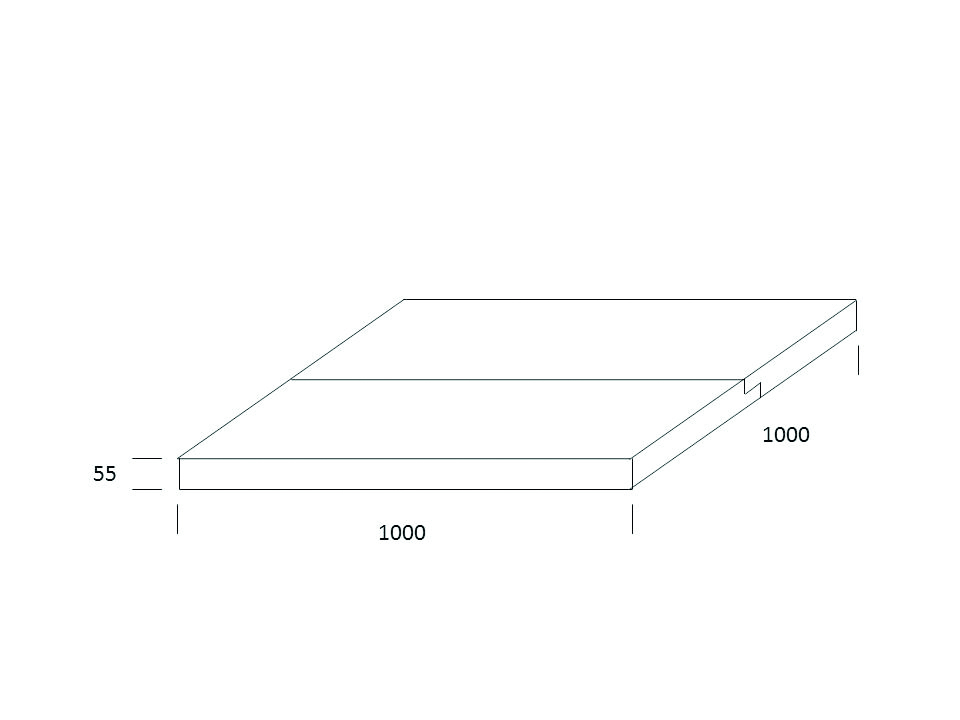

WatoRin® GEB 82-UB

Substructure element

Advantages:
  • In the sizes 1000 x 1000 and 1200 x 1400 mm

Downloads

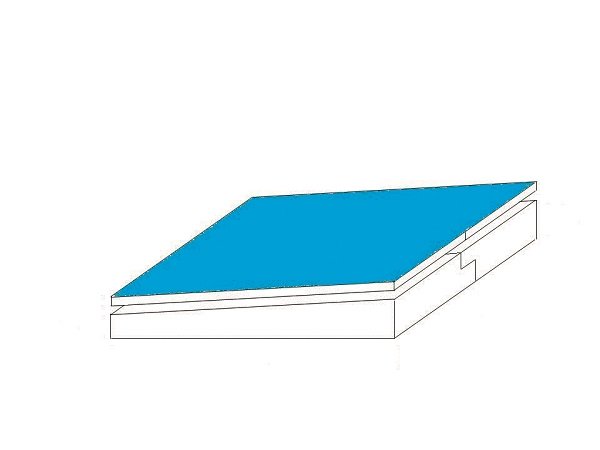

WatoRin® GEB 62-LV

Slope board incl. composite sealing membrane for floor-level showers, suitable for all WatoRin® SDR 62 shower channels

Advantages:
  • In sizes 1000 x 1000 and 1200 x 1400, incl. substructure element with slope
  • Ready sealed slope board
  • Wheelchair-accessible

Downloads

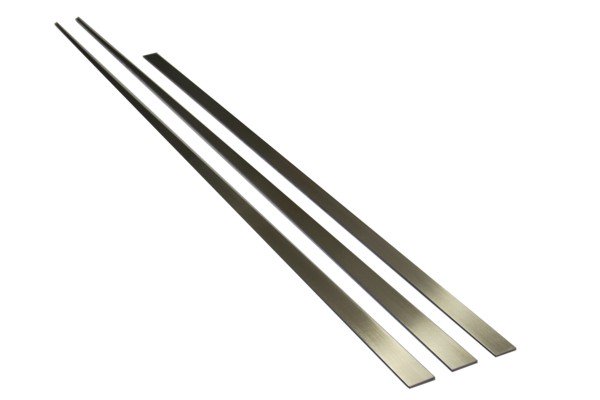

WatoRin® GEK 1250

Slope profile and trim profile for floor-level showers

Advantages:
  • perfectly matched in combination with WatoRin SDR shower channels
  • eliminates time-consuming slope cuts of the floor tiles
  • enables perfect installation - exact slope of 2% specified

Downloads
